Description

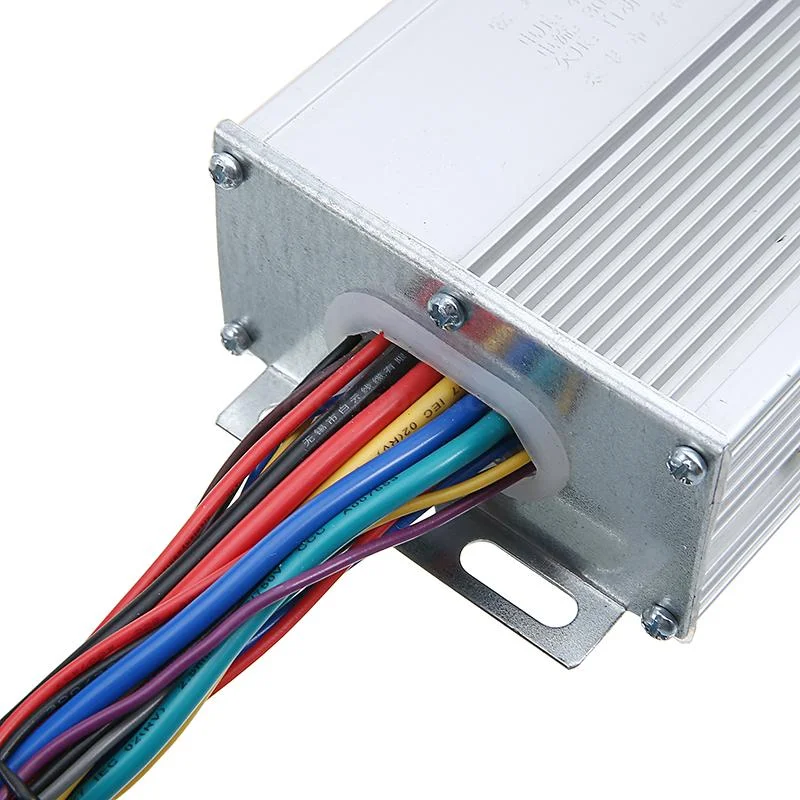

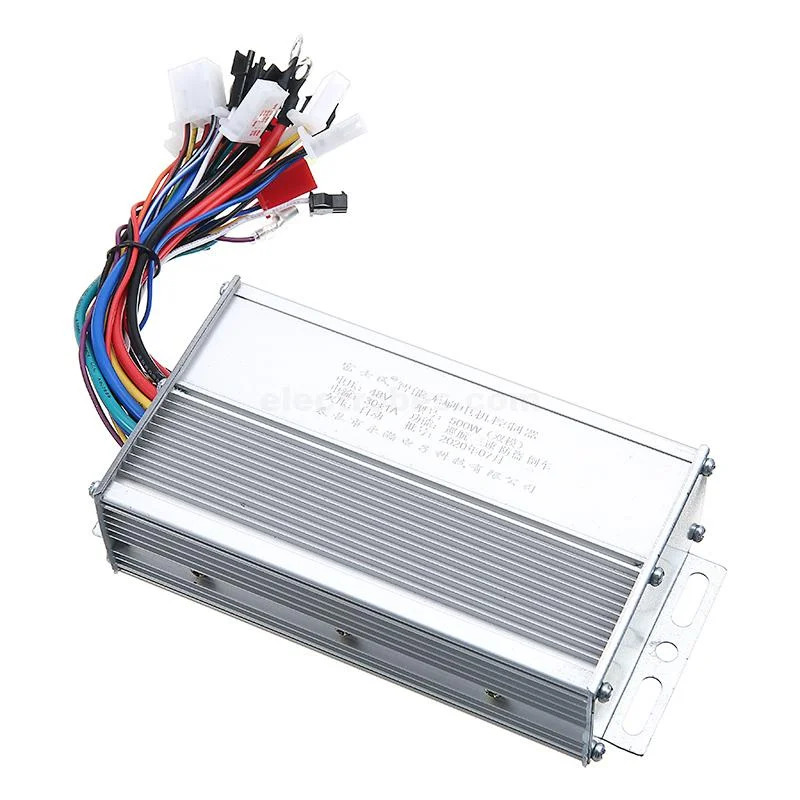

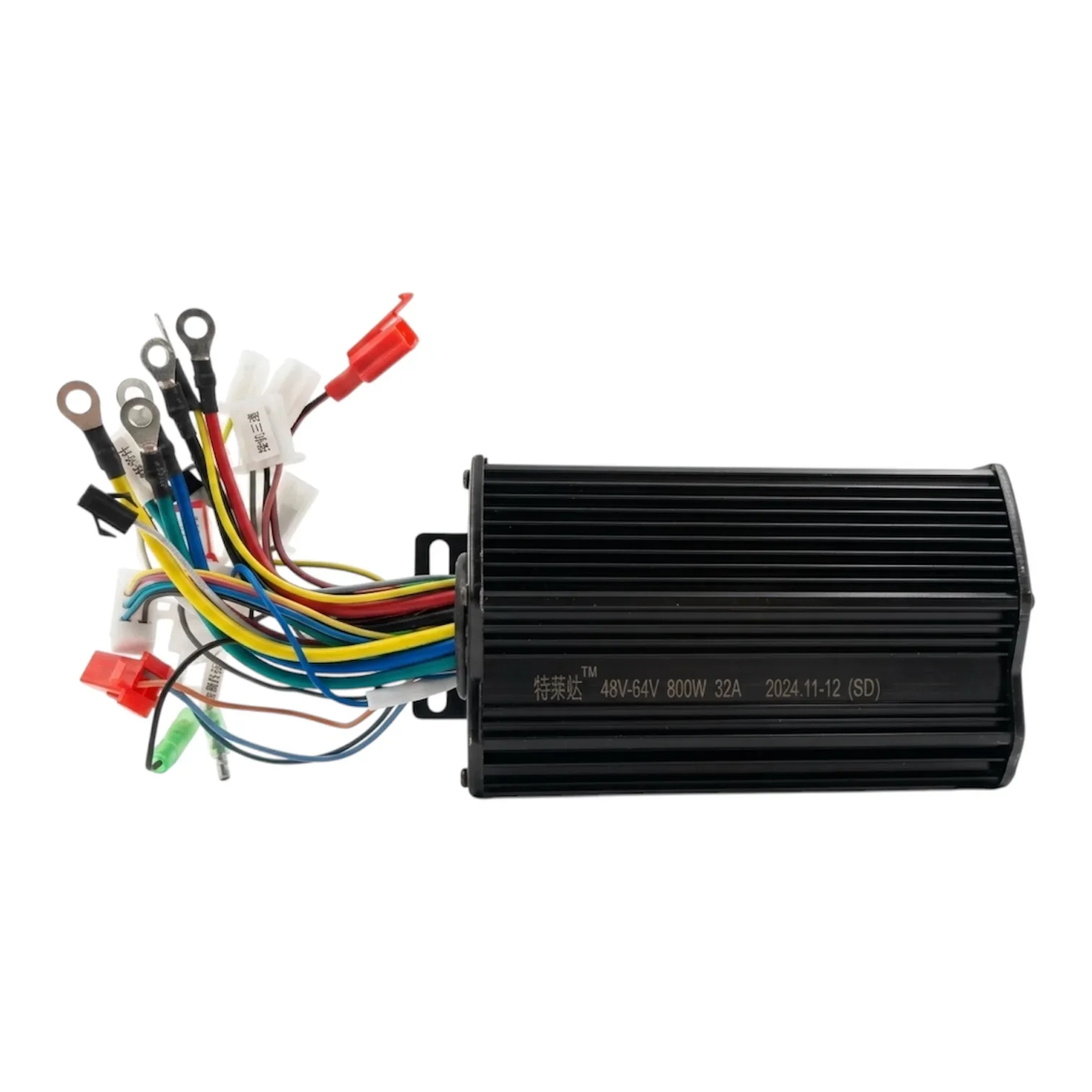

The DC 48–64V 800W Brushless Motor Controller is a waterproof and durable controller designed for compatible brushless DC motors used in electric bicycles and scooters. It supports 48–64V battery systems, including lithium and lead-acid battery types.
The controller uses 3-phase motor and 5 Hall sensor connections and includes dedicated wiring for power, electric lock, throttle, and motor phases. It also provides optional functions such as three-speed control, anti-theft protection, EBS, and cruise control.
Features
- 800W high-power brushless motor controller
- 48–64V DC operating voltage
- Waterproof design for outdoor applications
- Supports compatible BLDC motors with Hall sensors
- 12 MOSFET power tubes
- Three-speed control
- Anti-theft function
- EBS function
- Cruise control
- Natural cooling
- Easy to install
- Long service life
- IP55 protection rating
Specification
- Controller Type: Brushless DC Motor Controller
- Rated Voltage: 48–64V DC
- Rated Current: 32A
- Rated Power: 800W
- Matching Motor: Brushless DC Motor
- Under-Voltage Protection: 41V
- Throttle Voltage: 1–4.2V
- Phase Angle: 60° / 120°
- Brake Level: Low / High
- Cooling: Natural Cooling
- Ambient Temperature: -20°C to 50°C
- Protection Grade: IP55
- Size: Approx. 150 × 80 × 40 mm
- Motor Connection: 3 Phase + 5 Hall Wires
Package Includes
- 1 × 800W Brushless Motor Controller
