Description

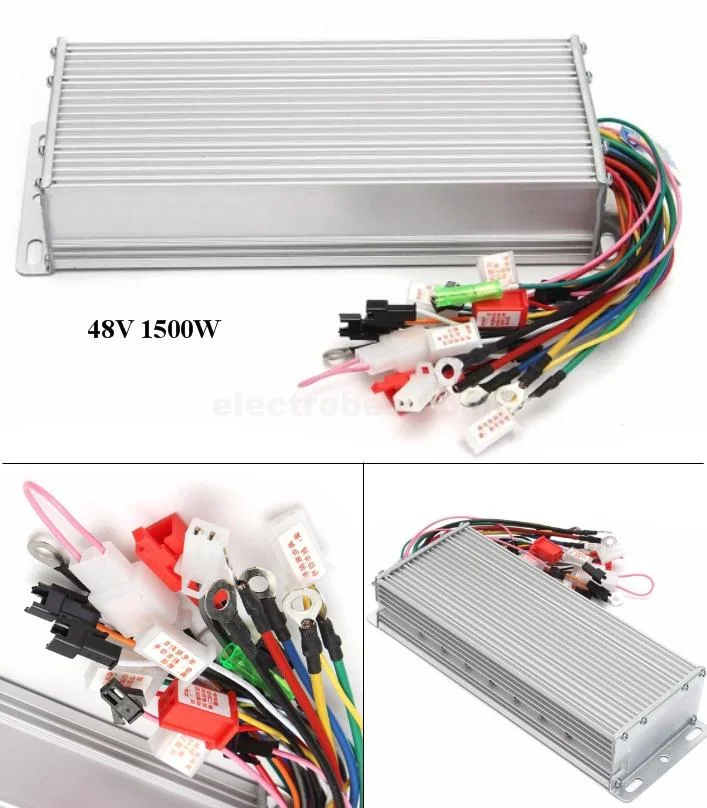

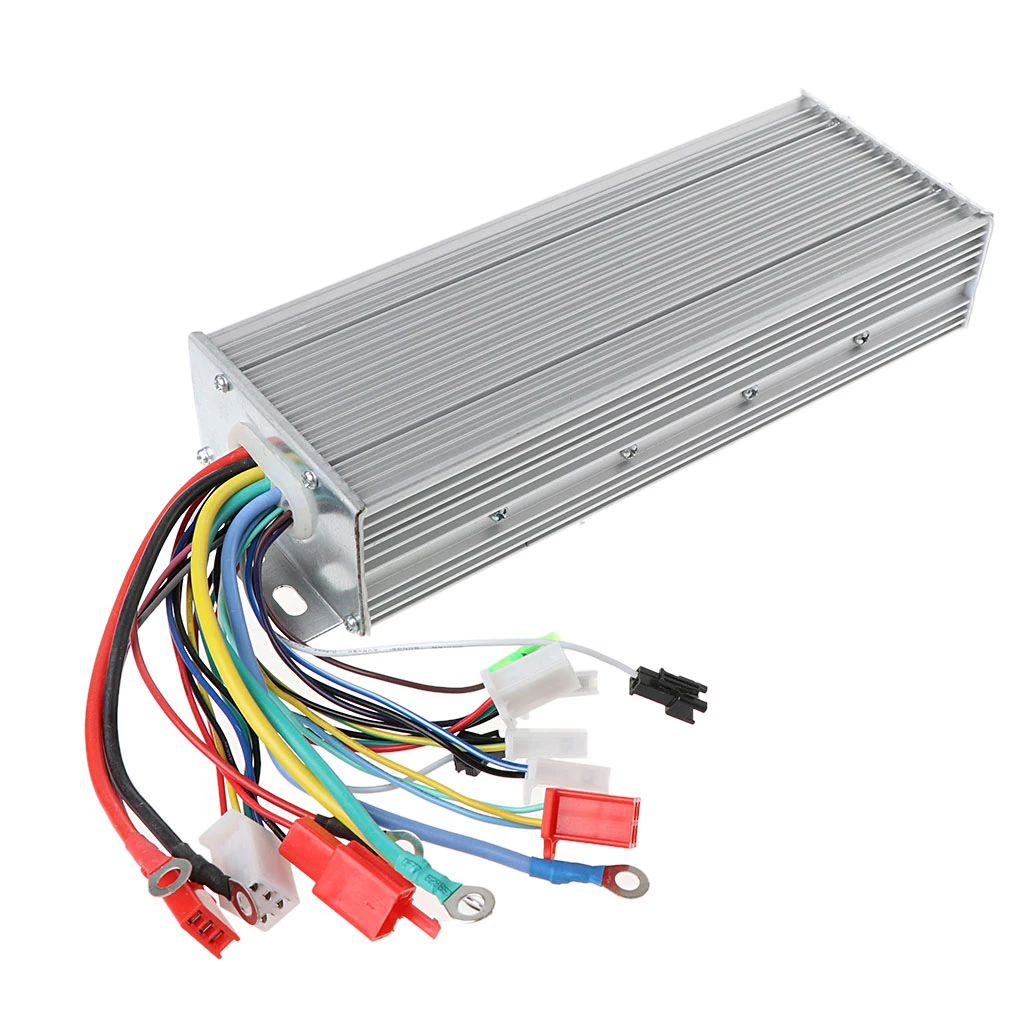

The DC 48V 1500W Brushless Motor Controller is designed to control compatible brushless DC motors used in electric bikes, scooters, forklifts, and other electric vehicle applications. Its waterproof construction makes it suitable for outdoor use and demanding operating environments.
The controller is compatible with 3-phase brushless motors using 5 Hall-sensor wires, providing the required power, motor-phase, throttle, and electric-lock connections for normal operation. Additional connections are available for three-speed selection, electronic braking, cruise control, anti-theft protection, LCD display, and automatic phase learning.
It can be used with different 48V battery systems, including lithium-ion and lead-acid batteries.
Features
- 48V rated voltage
- 1500W rated power
- Waterproof design for outdoor applications
- Compatible with 3-phase brushless DC motors
- Supports 5 Hall-sensor connections
- Suitable for three-wire throttles
- Three-speed control
- Anti-theft function
- Electronic braking system (EBS)
- Cruise control function
- Self-learning/phase-learning function
- High- and low-level brake inputs
- Electric door-lock connection
- LCD display and speed-meter connections
- Suitable for lithium and lead-acid battery systems
- Designed for electric bikes, scooters, and other electric vehicles
Specification
- Controller Type: Brushless DC Motor Controller
- Rated Voltage: 48V DC
- Rated Power: 1500W
- Throttle Voltage: 1.1–4.2V
- Brake Level: High / Low
- Under-Voltage Protection: 42V ±0.5V
- Motor Type: 3-Phase Brushless DC Motor
- Phase Angle: 60° or 120°
- Hall Sensor: 5 Hall wires
- Motor Connection: 3 Phase + 5 Hall
- Operating Temperature: -40°C to 80°C
- Dimensions: 24.5 × 8.7 × 4.3cm
- Battery Compatibility: Lithium-ion, Lead-acid, and other compatible 48V batteries
- Throttle Type: 3-wire throttle

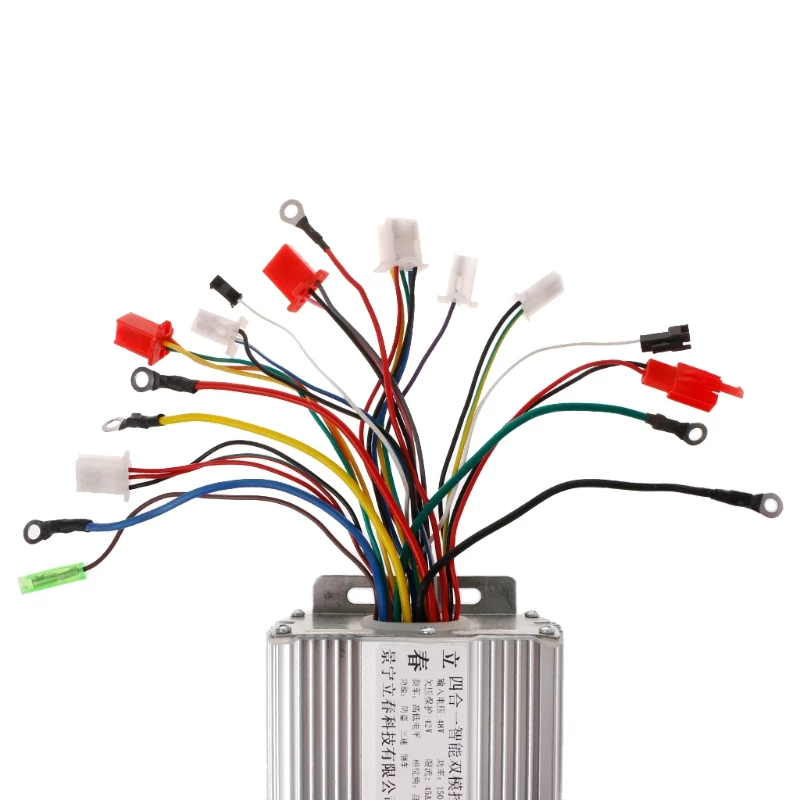

Cable Connections
- Power Cables: Large Red (+), Large Black (-)
- Motor Phase Cables: Large Yellow, Green, Blue
- Electric Door Lock: Red cable with 6.3mm plug
- Hall Cables: Small Red, Black, Yellow, Green, Blue
- Throttle Cables: Red (5V), Blue (Signal), Black (Negative)
- Speed Selection: Blue (High), Black (Normal), Yellow (Low)
- High-Level Brake: Yellow
- Low-Level Brake: Brown + Black
- Anti-Theft: Power, start, motor signal, and motor lock connections
- Self-Learning: White cables
- Cruise Control: Gray cables
- LCD Display: Blue and Green connections
- Speed Meter: Green connection
Applications
- Electric bicycles
- Electric scooters
- Electric tricycles
- Electric forklifts
- Custom electric vehicles
- DIY EV conversion projects
- Other compatible 48V brushless motor systems
Package Includes
- 1 × DC 48V 1500W Brushless Motor Controller
