Description

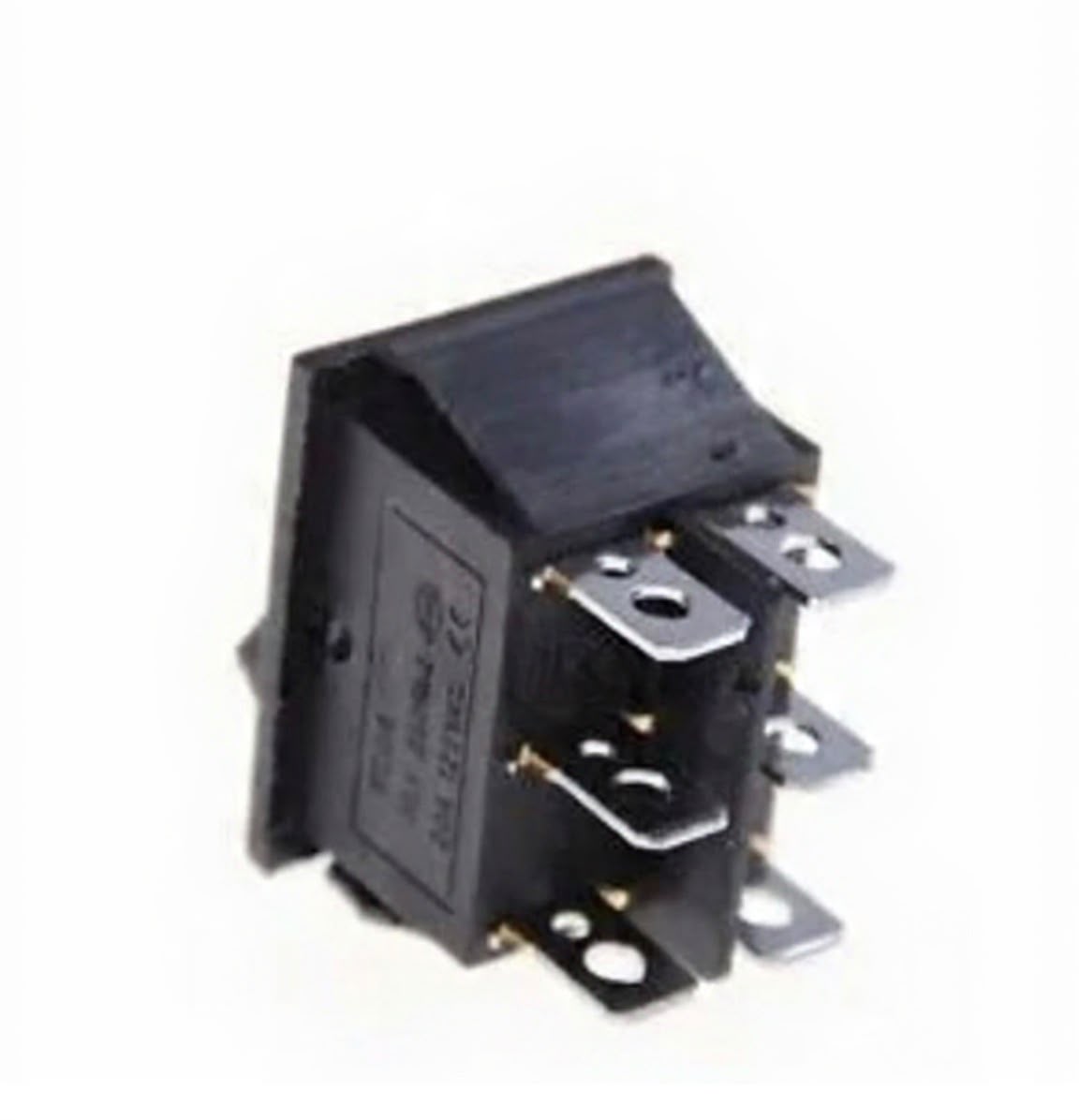

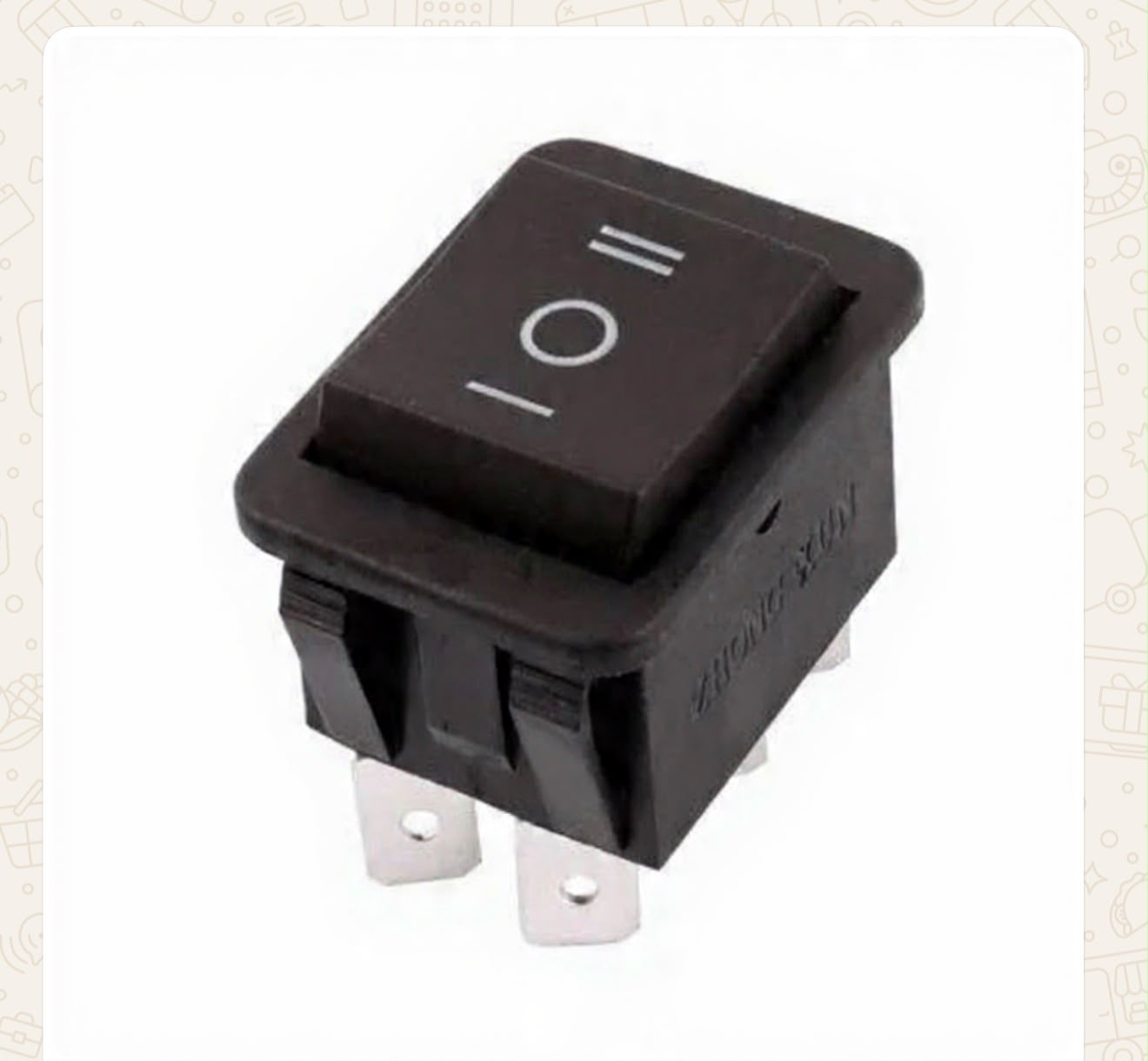

The KCD4 DPDT Rocker Switch is a strong and reliable switch designed for controlling electrical circuits. Its rocker-style design makes it easy to operate, while the DPDT configuration provides flexible switching between different circuit connections.
With high current handling capacity, low contact resistance, and excellent insulation performance, this switch is suitable for a wide range of electrical and electronic applications. It is a practical choice for power supplies, machinery, appliances, control panels, and DIY projects.
Built for repeated operation, the KCD4 offers dependable switching performance and a long electrical service life.
Specifications
| Specification | Details |
|---|---|
| Product Type | Rocker Switch |
| Model | KCD4 |
| Switch Type | DPDT, 2-State |
| UL/CUL Rating | 20A 125VAC / 16A 250VAC |
| Additional UL/CUL Rating | 6A 125VL / 3/4HP 250VAC |
| VDE/ENEC/CQC Rating | 16(4)A 250VAC~T125 |
| Initial Contact Resistance | 20 mΩ max. |
| Insulation Resistance | 100 MΩ min. at 500VDC |
| Dielectric Strength | 1,000VAC (UL) / 3,000VAC (VDE) for 1 minute |
| Electrical Life | 6,000 cycles (UL) / 10,000 cycles (VDE) |
| Operation | Rocker |
| Application | Electrical & Electronic Circuit Control |
Applications
- Power supplies
- Electrical equipment
- Control panels
- Machines and appliances
- Electronic projects
- DIY electrical projects
- Circuit switching and control
