Description

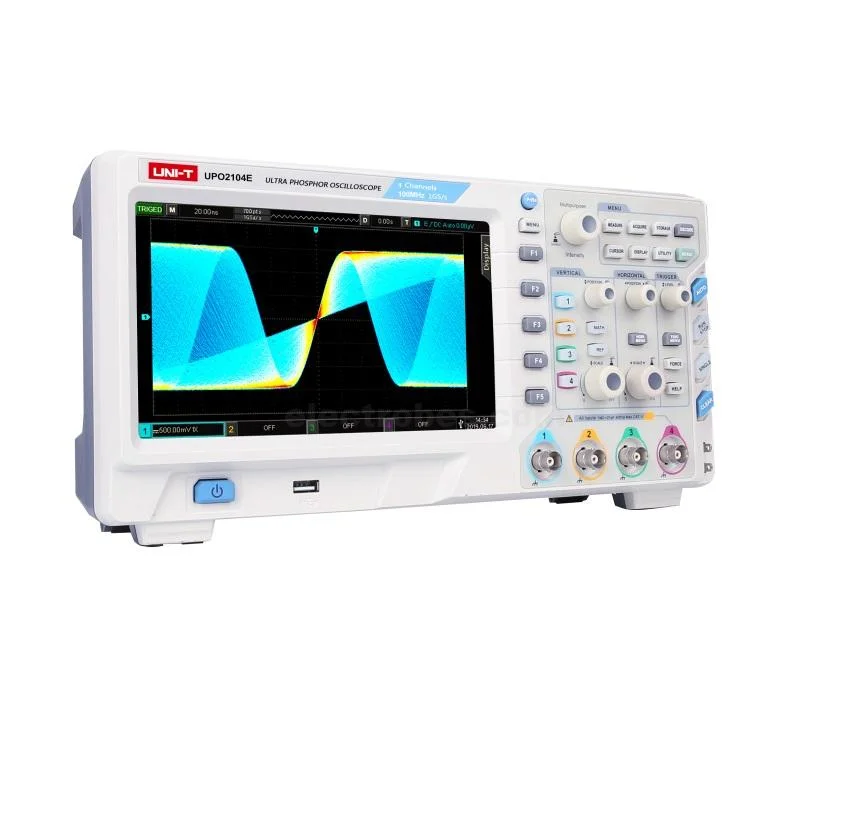

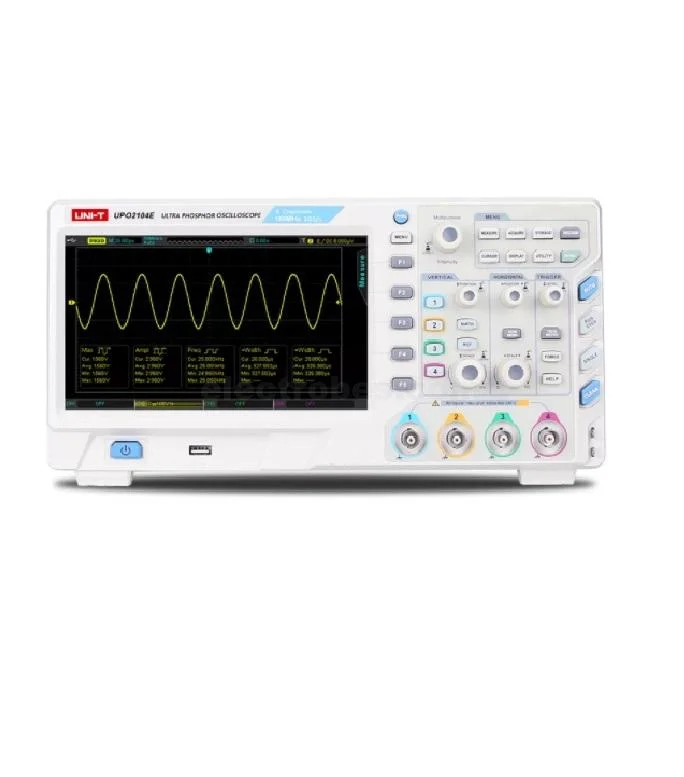

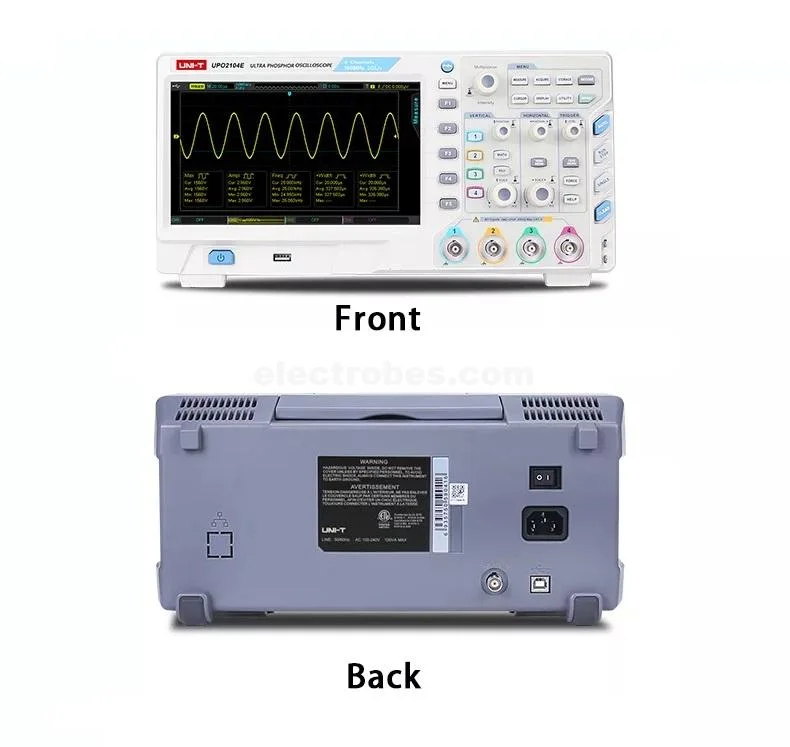

The UNI-T UPO2104E is a high-performance 4-channel digital oscilloscope designed for engineers, technicians, researchers, and electronics professionals who require detailed and reliable signal analysis. Part of the UPO2000E series, it combines a 100MHz bandwidth, 1GSa/s sampling rate, and advanced waveform visualization technology.
Its 56Mpts maximum storage depth allows users to capture longer-duration signals while retaining waveform details. With a waveform capture rate of up to 80,000 wfms/s, the oscilloscope can help identify occasional glitches, signal jitter, and other low-probability events.
One of the key features of the UPO2104E is its independent time base adjustment for each channel, allowing users to observe signals with significantly different frequencies simultaneously. The oscilloscope also provides 256-level intensity grading and color temperature visualization, making frequently occurring waveform characteristics easier to identify.
The UPO2104E offers a comprehensive range of measurement and analysis functions, including 34 automatic measurement parameters, Zoom, Math, statistics, and advanced calculations. It also supports serial communication decoding for RS-232/UART, I²C, and SPI, along with USB and LAN connectivity for convenient data transfer and system integration.
Key Features
- 4 analog channels
- 100MHz bandwidth
- 1GSa/s maximum sampling rate
- Up to 56Mpts storage depth
- Up to 80,000 wfms/s waveform capture rate
- Independent time base adjustment for each channel
- 256-level intensity grading display
- Color temperature waveform visualization
- 34 automatic measurement parameters
- Zoom and Math functions
- Statistics and advanced calculation functions
- Multiple advanced trigger types
- Vertical scale from 1mV/div to 20V/div
- Horizontal scale from 5ns/div to 50s/div
- Serial bus decoding for RS-232/UART, I²C, and SPI
- USB Host and USB Device interfaces
- LAN connectivity
- AUX output for trigger output and Pass/Fail functions
- Large 8-inch TFT LCD
- 800 × 480 WVGA display resolution
Technical Specifications
| Specification | Details |
|---|---|
| Model | UNI-T UPO2104E |
| Type | Ultra Phosphor Digital Oscilloscope |
| Channels | 4 Analog |
| Bandwidth | 100MHz |
| Sample Rate | 1GSa/s |
| Memory Depth | 28Mpts per channel / 56Mpts using 1 channel |
| Waveform Capture Rate | Up to 80,000 wfms/s |
| Vertical Scale | 1mV/div – 20V/div |
| Horizontal Scale | 5ns/div – 50s/div |
| Display | 8-inch TFT LCD |
| Display Resolution | 800 × 480 |
| Display Technology | 256-level intensity grading / color temperature |
| Trigger Types | Edge, Pulse, Slope, Video, Run, Window, N-edge, Delay, Timeout, Duration, Setup/Hold, Code |
| Automatic Measurements | 34 parameters |
| Math Functions | Yes |
| Statistics | Yes |
| Serial Decode | RS-232/UART, I²C, SPI |
| Connectivity | USB Host, USB Device, LAN |
| AUX Output | Trigger Out, Pass/Fail |
| Weight | Approx. 3.5kg |
| Dimensions | 336 × 164 × 108mm |
Applications
The UNI-T UPO2104E is suitable for:
- Electronics research and development
- Circuit design and testing
- Digital signal analysis
- Serial communication debugging
- Power electronics testing
- Automotive electronics
- Embedded systems development
- Signal integrity analysis
- Troubleshooting and maintenance
- Laboratory measurements
- Educational and engineering applications
Package Contents
- 1 × UNI-T UPO2104E Digital Oscilloscope
- 4 × Oscilloscope Probes
- 1 × Power Cord
- 1 × USB Cable
