Description

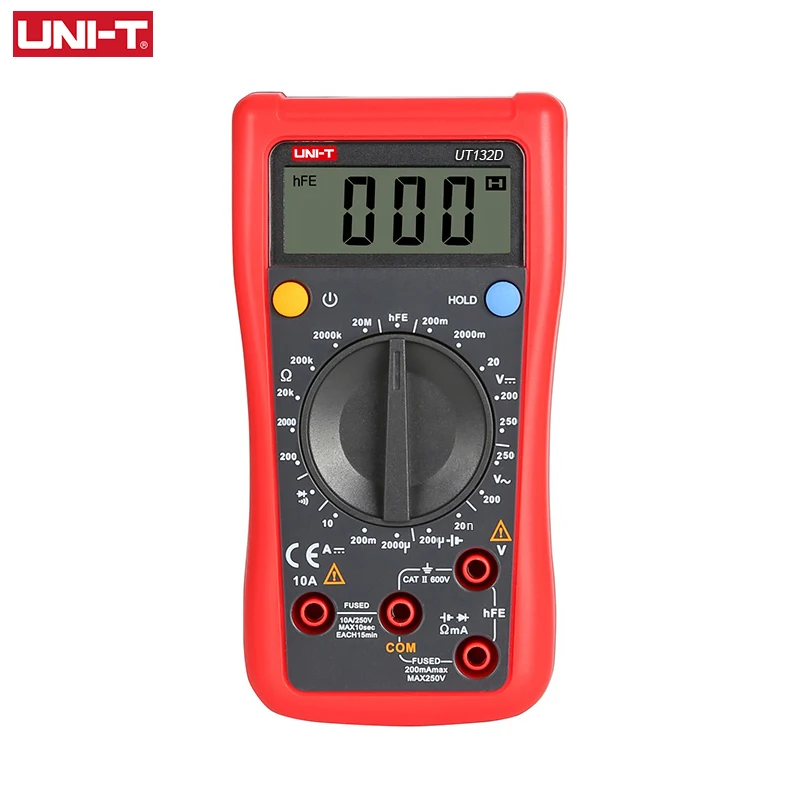

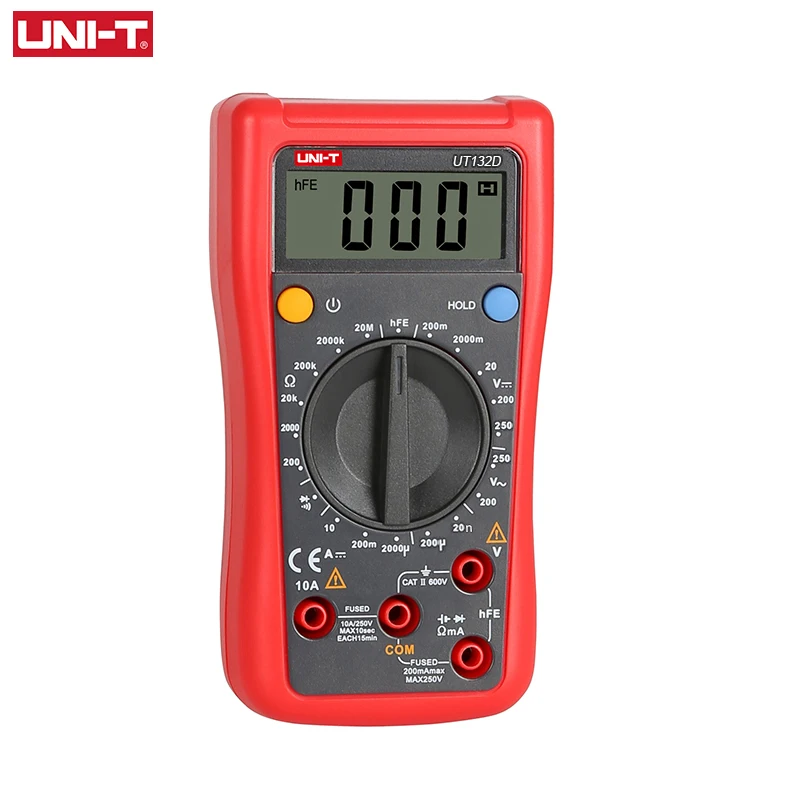

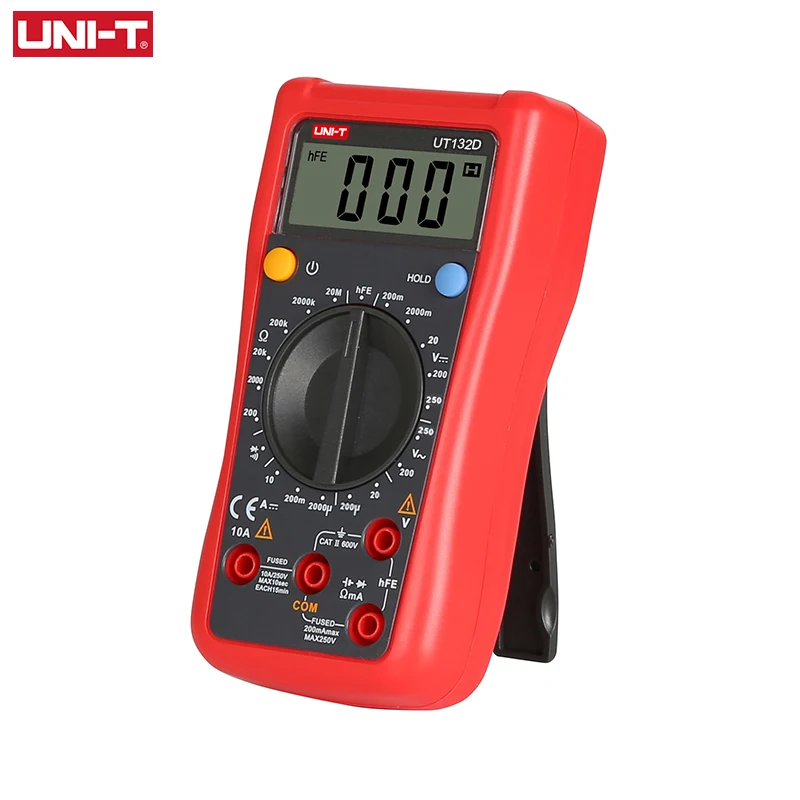

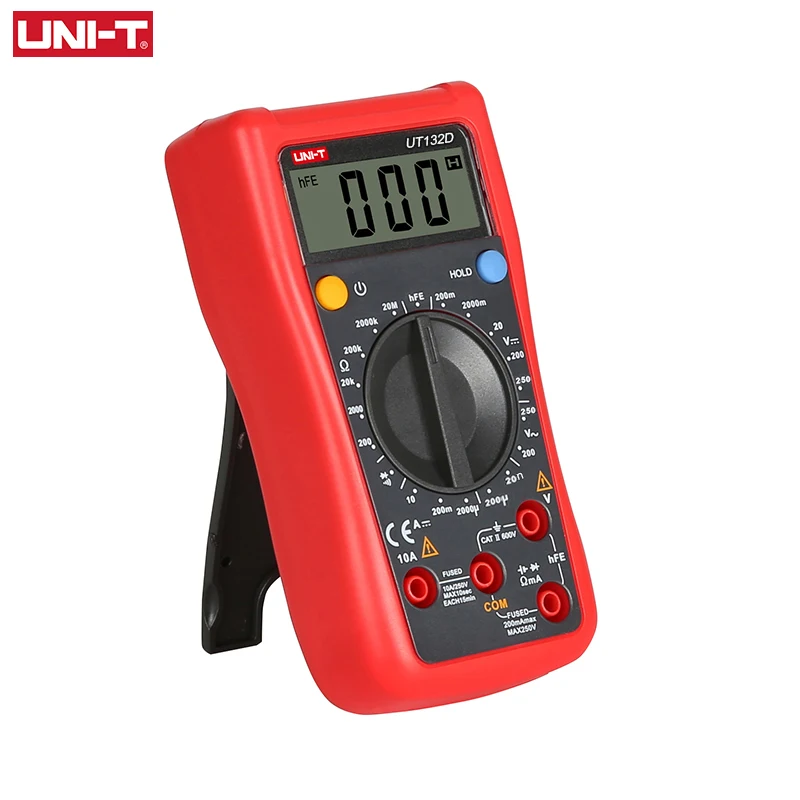

The UNI-T UT132D Digital Multimeter is a compact handheld instrument designed for everyday electrical and electronic testing. Its straightforward design and essential measurement functions make it suitable for beginners as well as technicians who need a reliable meter for routine measurements.
The UT132D can measure DC/AC voltage, DC current, resistance, and capacitance, along with diode, continuity, and transistor hFE testing. Its 2000-count LCD display provides clear readings, while manual range selection gives users direct control over the measurement range.
Additional features such as data hold and low-battery indication make the meter convenient for troubleshooting and laboratory work. The compact red-and-grey housing is easy to handle and carry, making it suitable for workshops, educational environments, electronics projects, and general maintenance.
Key Features
- AC/DC voltage measurement
- DC current measurement up to 10A
- Resistance measurement up to 20MΩ
- Capacitance measurement
- Diode testing
- Transistor hFE testing
- Continuity testing
- 2000-count LCD display
- Manual range selection
- Data hold function
- Low-battery indication
- Approximately 10MΩ DC voltage input impedance
- Compact handheld design
- Suitable for laboratory, educational, and general-purpose testing
Specifications
| Specification | Range / Details | Accuracy |
|---|---|---|
| Model | UNI-T UT132D | — |
| Display Count | 2000 counts | — |
| DC Voltage | 200mV / 2V / 20V / 200V / 250V* | ±(0.5% + 2) |
| AC Voltage | 200V / 250V* | ±(1.2% + 3) |
| DC Current | 2000µA / 20mA / 200mA / 10A | ±(1% + 2) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ | ±(0.8% + 5) |
| Capacitance | Supported | — |
| Continuity Test | Yes | — |
| Diode Test | Yes | — |
| Transistor hFE Test | Yes | — |
| Data Hold | Yes | — |
| Manual Range | Yes | — |
| Low Battery Indication | Yes | — |
| DC Voltage Input Impedance | Approx. 10MΩ | — |
| Power Supply | 9V 6F22 battery | — |
| LCD Size | 49 × 18 mm | — |
| Product Color | Red and Grey | — |
| Product Weight | Approx. 200 g | — |
| Product Dimensions | 72 × 137 × 35 mm | — |
Package Includes
- 1 × UNI-T UT132D Digital Multimeter
- 1 × Test Lead Set
- 1 × 9V Battery
- 1 × Multipurpose Socket
- 1 × User Manual
Applications
The UNI-T UT132D is suitable for:
- Basic electrical testing
- Electronics troubleshooting
- Laboratory measurements
- Student and educational projects
- Circuit testing
- Component testing
- DIY electronics
- Workshop maintenance
- General electrical troubleshooting
