Description

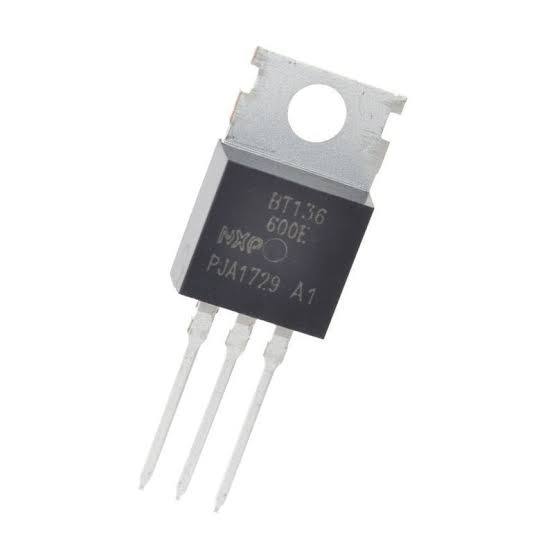

The BT136 600E TRIAC is a bidirectional semiconductor switching device used to control alternating current (AC) power. Unlike a conventional transistor, a TRIAC can conduct current in both directions when triggered, making it useful for regulating AC loads and switching power in electronic circuits.
The BT136 is commonly used in AC light dimmers, motor speed control circuits, lighting controllers, and other power regulation applications. Its TO-220 package allows convenient PCB mounting and supports heatsink installation when required by the operating conditions.
With its gate-triggered operation, the BT136 can be incorporated into suitable control circuits for switching AC loads. It can also be used with microcontroller-based projects when an appropriate gate-driving circuit and electrical isolation are provided.
Key Features
- BT136-600E TRIAC for bidirectional AC switching
- Maximum terminal voltage: 600V, as listed
- Maximum terminal current: 4A, as listed
- Gate trigger current: 10mA, as listed
- On-state voltage: 1.4V, as listed
- Holding current: 2.2mA, as listed
- Latching current: 4mA, as listed
- TO-220 package
- Suitable for AC power control and switching applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BT136-600E |
| Device Type | TRIAC |
| Repetitive Peak Off-State Voltage | 600V, as indicated by the listing |
| Maximum Terminal Current | 4A, as listed |
| Gate Trigger Current (IGT) | 10mA, as listed |
| On-State Voltage | 1.4V, as listed |
| Holding Current (IH) | 2.2mA, as listed |
| Latching Current (IL) | 4mA, as listed |
| Package | TO-220 |
| Operating Function | Bidirectional AC switching |
| Product Price | Rs. 40 |
| Availability | In stock |
